基于Win32的OpenGL1.0

使用win32原生API实现OpenGL，可以取代glut等第三方库。

引自此博客。

// 使用win32原生API实现OpenGL
#include<Windows.h>
#include<gl/GL.h>

#pragma comment(lib, "opengl32.lib")

BOOL win32_regist_class(const char* class_name) // 注册win32窗口类
{
	WNDCLASSEXA cs =
	{
		sizeof(WNDCLASSEXA),
		CS_HREDRAW | CS_VREDRAW,
	[](HWND hwnd, UINT msg, WPARAM wparam, LPARAM lparam)->LRESULT
		{
			switch (msg) {
			case WM_NCCREATE:
			{
				SetWindowLongPtrA(hwnd, GWLP_USERDATA, (LONG_PTR)((LPCREATESTRUCTA)lparam)->lpCreateParams);
				break;
			};
			case WM_PAINT:
			{
				PAINTSTRUCT ps;
				BeginPaint(hwnd, &ps);
				EndPaint(hwnd, &ps);
				break;
			}
			case WM_ERASEBKGND:
			{
				return TRUE;
			}
			case WM_DESTROY:
			{
				PostQuitMessage(0);
				break;
			}
			default:
				break;
		}
			return DefWindowProcA(hwnd, msg, wparam, lparam);
		},
		0,
		0,
		(HINSTANCE)GetModuleHandleA(nullptr),
		nullptr,
		LoadCursorA(nullptr,IDC_ARROW),
		(HBRUSH)COLOR_WINDOW,
		nullptr,
		class_name,
		nullptr
	};
	return RegisterClassExA(&cs);
}

// 创建win32窗口
HWND win32_create(const char* class_name, const char* window_name, int x, int y, int width, int height)
{
	return CreateWindowExA(0, class_name, window_name, WS_OVERLAPPEDWINDOW | WS_VISIBLE, x, y, width, height, nullptr, nullptr, GetModuleHandle(nullptr), nullptr);
}

//获取可用于OpenGL绘制的DC
HDC win32_get_gl_dc(HWND hwnd)
{
	PIXELFORMATDESCRIPTOR pfd = {};
	pfd.nSize = sizeof(PIXELFORMATDESCRIPTOR);
	pfd.nVersion = 1;
	pfd.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL | PFD_DOUBLEBUFFER;
	auto hdc = GetDC(hwnd);
	auto pixelFormat = ChoosePixelFormat(hdc, &pfd);
	if (!pixelFormat)
	{
		ReleaseDC(hwnd, hdc);
		return nullptr;
	}
	if (!SetPixelFormat(hdc, pixelFormat, &pfd))
	{
		ReleaseDC(hwnd, hdc);
		return nullptr;
	}
	return hdc;
}

// 处理win32的消息
BOOL win32_peek_message(HWND hwnd)
{
	MSG msg;
	if (PeekMessage(&msg, hwnd, 0, 0, PM_REMOVE))
	{
		if (msg.message == WM_QUIT)
			return FALSE;
		TranslateMessage(&msg);
		DispatchMessageA(&msg);
	}
	return TRUE;
}

// 创建OpenGL的API
HGLRC gl_create(HDC hdc)
{
	auto hglrc = wglCreateContext(hdc);
	if (!hglrc)
		return nullptr;
	if (!wglMakeCurrent(hdc, hglrc))
	{
		return nullptr;
	}
	// 这里只获取了glCreateShader作为例子
	auto glCreateShader = (GLuint(__stdcall*)(GLenum type))wglGetProcAddress("glCreateShader");
	return hglrc;
}


// 渲染
void render(HWND hwnd, HDC hdc, HGLRC hglrc)
{
	RECT rc;
	GetClientRect(hwnd, &rc);
	wglMakeCurrent(hdc, hglrc);
	glViewport(0, 0, rc.right, rc.bottom);
	glClearColor(0.4f, 0.5f, 0.4f, 0);
	glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

	glBegin(GL_TRIANGLE_STRIP);
	glColor3f(1, 0, 0); glVertex2f(0.0f, 0.0f);
	glColor3f(0, 1, 0); glVertex2f(0.5f, 0.5f);
	glColor3f(0, 0, 1); glVertex2f(0.0f, 0.5f);
	glEnd();
}

int main()
{
	win32_regist_class("test");
	auto hwnd = win32_create("test", "test", 100, 100, 500, 400);
	auto hdc = win32_get_gl_dc(hwnd);
	auto hglrc = gl_create(hdc);
	while (true)
	{
		if (win32_peek_message(nullptr) == FALSE)
			break;
		render(hwnd, hdc, hglrc);
		SwapBuffers(wglGetCurrentDC());
	}
	return 0;
}

基于Win32的OpenGL开发

win32程序的框架是winMain+WndProc，前者创建窗口同时实现窗口循环，后者实现消息处理。

如何在win32下使用OpenGL，窗口创建的过程中，哪一步加入OpenGL的扩展呢？

窗口创建时，由WM_CREATE、WM_SIZE、WM_PAINT三个消息依次产生，在WM_CREATE中增加窗口对OpenGL支持的代码，同时对OpenGL渲染环境做初始化，然后在WM_SIZE中实现OpenGL视图的变换，这样OpenGL绘图的前置工作就已经做完了，在WM_PAINT中就可以进行渲染了。

❗按照此博客的方法和代码跑不通

另一个思路是，在窗口创建完成时创建OpenGL的渲染环境，在消息循环中渲染（此时的消息循环等同于OpenGL的窗口循环），然后在消息处理函数中处理WM_SIZE来适应窗口大小：（引自基于Win32的OpenGL开发初探）

#include <windows.h>
#include<GL/glut.h>

void drawScene(HDC* hdc);
void EnableOpenGL(HWND hWnd, HDC* hdc, HGLRC* hrc);
void DisableOpenGL(HWND hWnd, HDC hdc, HGLRC hrc);

LRESULT CALLBACK WndProc(HWND, UINT, WPARAM, LPARAM); //窗口函数声明

int CALLBACK WinMain(HINSTANCE hInstance, //WinMain函数说明
	HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) {

	char lpszClassName[] = "Windows"; //窗口类名
	char lpszTitle[] = "Win32 Window"; //窗口标题名
	WNDCLASS wndclass;
	wndclass.style = CS_HREDRAW | CS_VREDRAW; //窗口类型为缺省类型
	wndclass.lpfnWndProc = WndProc; //窗口处理函数为WndProc
	wndclass.cbClsExtra = 0; //窗口类无扩展
	wndclass.cbWndExtra = 0; //窗口实例无扩展
	wndclass.hInstance = hInstance; //当前实例句柄
	wndclass.hIcon = LoadIcon(NULL, IDI_APPLICATION); //使用缺省图标
	wndclass.hCursor = LoadCursor(NULL, IDC_ARROW); //窗口采用箭头光标
	wndclass.hbrBackground = NULL; //窗口背景为白色
	wndclass.lpszMenuName = NULL; //窗口中无菜单
	wndclass.lpszClassName = lpszClassName; //窗口类名为'窗口实例'
	if (!RegisterClass(&wndclass)) //注册窗口，若失败，则发出声音
	{
		MessageBeep(0);
		return FALSE;
	}
	//创建窗口操作
	HWND hwnd = CreateWindow(
		lpszClassName,
		lpszTitle, //窗口实例的标题名
		WS_OVERLAPPEDWINDOW, //窗口的风格
		CW_USEDEFAULT,
		CW_USEDEFAULT, //窗口左上角坐标为缺省值
		CW_USEDEFAULT,
		CW_USEDEFAULT, //窗口的高度和宽度为缺省值
		NULL, //此窗口无父窗口
		NULL, //此窗口无主菜单
		hInstance, //应用程序当前句柄
		NULL); //不使用该值
	ShowWindow(hwnd, SW_SHOW); //显示窗口
	UpdateWindow(hwnd); //绘制用户区

	HGLRC hRC; //绘制环境
	HDC hDC; //设备环境
	EnableOpenGL(hwnd, &hDC, &hRC);

	MSG msg = { 0 }; //消息结构
	while (GetMessage(&msg, NULL, 0, 0)) //消息循环
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
		drawScene(&hDC);
	}

	DisableOpenGL(hwnd, hDC, hRC);
	return 0; //程序终止时，将信息返回操作系统
}

LRESULT CALLBACK WndProc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam) {
	RECT rcClient;

	switch (message)
	{
		case WM_CREATE:
		{
			return 0;
		}
		break;
		case WM_DESTROY:
		{
			PostQuitMessage(0); //调用该函数发出WM_QUIT消息
		}
		break;
		case WM_SIZE:
		{
			GetClientRect(hwnd, &rcClient);
			int w = rcClient.right - rcClient.left;  // 获得客户区宽度
			int h = rcClient.bottom - rcClient.top;  // 获得客户区高度
			glViewport(0, 0, w, h);
		}
		break;
		case WM_TIMER:
		{
			InvalidateRect(hwnd, NULL, FALSE);
		}
		break;
		default: //缺省消息处理函数
			return DefWindowProc(hwnd, message, wParam, lParam);
	}
	return DefWindowProc(hwnd, message, wParam, lParam);
}

void drawScene(HDC* hdc) {

	glClearColor(0.3f, 0.3f, 0.3f, 0.0f);
	glClear(GL_COLOR_BUFFER_BIT);

	glColor4f(1.0f, 0.0f, 0.0f, 0.0f);

	glBegin(GL_QUADS);
	glVertex3f(-0.6f, -0.6f, 0.0f);
	glVertex3f(0.6f, -0.6f, 0.0f);
	glVertex3f(0.6f, 0.6f, 0.0f);
	glVertex3f(-0.6f, 0.6f, 0.0f);
	glEnd();

	SwapBuffers(*hdc);

	Sleep(1);
}

void EnableOpenGL(HWND hwnd, HDC* hdc, HGLRC* hrc) {

	*hdc = GetDC(hwnd);
	PIXELFORMATDESCRIPTOR pfd = {
		sizeof(PIXELFORMATDESCRIPTOR),    // size of this pfd
		1,                                // version number
		PFD_DRAW_TO_WINDOW |              // support window
		PFD_SUPPORT_OPENGL |              // support OpenGL
		PFD_DOUBLEBUFFER,                 // double buffered
		PFD_TYPE_RGBA,                    // RGBA type
		24,                               // 24-bit color depth
		0, 0, 0, 0, 0, 0,                 // color bits ignored
		0,                                // no alpha buffer
		0,                                // shift bit ignored
		0,                                // no accumulation buffer
		0, 0, 0, 0,                       // accum bits ignored
		32,                               // 32-bit z-buffer
		0,                                // no stencil buffer
		0,                                // no auxiliary buffer
		PFD_MAIN_PLANE,                   // main layer
		0,                                // reserved
		0, 0, 0                           // layer masks ignored
	};
	int iPixelFormat = ChoosePixelFormat(*hdc, &pfd);
	SetPixelFormat(*hdc, iPixelFormat, &pfd);

	// create and enable the render context (RC)
	*hrc = wglCreateContext(*hdc);
	wglMakeCurrent(*hdc, *hrc);
}

void DisableOpenGL(HWND hwnd, HDC hdc, HGLRC hrc) {
	wglMakeCurrent(nullptr, nullptr);
	wglDeleteContext(hrc);
	ReleaseDC(hwnd, hdc);
}

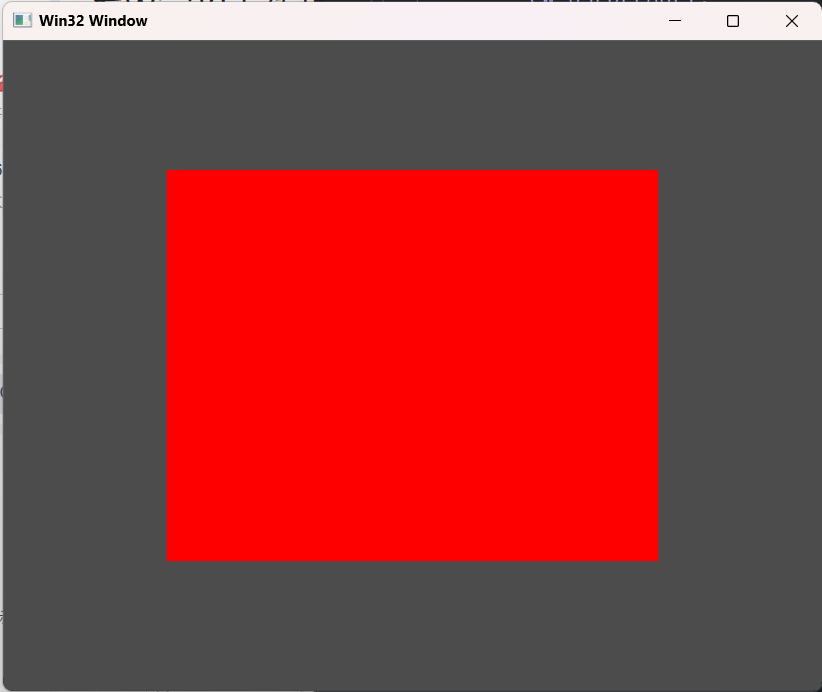

运行结果如下：

使用Win32调用GL

#include <Windows.h>
#include <gl/GL.h>
#include <iostream>

const unsigned int windowsWidth = 800;
const unsigned int windowsHeight = 600;
bool fullScreen = true;

LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam);

int APIENTRY wWinMain(
		_In_     HINSTANCE hInstance,
		_In_opt_ HINSTANCE hPrevInstance,
		_In_     LPWSTR    lpCmdLine,
		_In_     int       nCmdShow)
	{

	char info_log[512]{};
	char lpszClassName[] = "Windows";
	char lpszTitle[] = "Win32 Window";
	WNDCLASS wndclass{};
	wndclass.style = CS_HREDRAW | CS_VREDRAW;
	wndclass.lpfnWndProc = WndProc;
	wndclass.cbClsExtra = 0;
	wndclass.cbWndExtra = 0;
	wndclass.hInstance = hInstance;
	wndclass.hIcon = LoadIcon(NULL, IDI_APPLICATION);
	wndclass.hCursor = LoadCursor(NULL, IDC_ARROW);
	wndclass.hbrBackground = NULL;
	wndclass.lpszMenuName = NULL;
	wndclass.lpszClassName = lpszClassName;
	if (!RegisterClass(&wndclass))
	{
		MessageBeep(0);
		return FALSE;
	}

	HWND hwnd = CreateWindow(
		lpszClassName,
		lpszTitle,
		WS_OVERLAPPEDWINDOW,
		CW_USEDEFAULT,
		CW_USEDEFAULT,
		windowsWidth,
		windowsHeight,
		NULL,
		NULL,
		hInstance,
		NULL);



	// create context
	HDC hDC = GetDC(hwnd);
	HGLRC hRC{};

	if (hDC)
	{
		int pixelFormat;
		PIXELFORMATDESCRIPTOR pixelFormatDesc;

		/* initialize bits to 0 */
		memset(&pixelFormatDesc, 0, sizeof(PIXELFORMATDESCRIPTOR));
		pixelFormatDesc.nSize = sizeof(PIXELFORMATDESCRIPTOR);
		pixelFormatDesc.nVersion = 1;
		pixelFormatDesc.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL;
		pixelFormatDesc.iPixelType = PFD_TYPE_RGBA;
		pixelFormatDesc.cColorBits = 32;
		pixelFormatDesc.cAlphaBits = 8;
		pixelFormatDesc.cDepthBits = 24;

		pixelFormat = ChoosePixelFormat(hDC, &pixelFormatDesc);
		if (pixelFormat)
		{
			if (SetPixelFormat(hDC, pixelFormat, &pixelFormatDesc))
				hRC = wglCreateContext(hDC);
		}
	}
	else
	{
		std::cout << "ERROR::HDC::CREATE_FAILED\n" << info_log << std::endl;
	}
	if (hRC) {  // 待看
		wglMakeCurrent(hDC, hRC);
	}
	else
	{
		std::cout << "ERROR::HRC::CREATE_FAILED\n" << info_log << std::endl;
	}
	ShowWindow(hwnd, SW_SHOW);
	UpdateWindow(hwnd);

	//if (!gladLoadGL())
	//{
	//	std::cout << "Could not initialize GLAD \n";
	//}
	//else {
	//	std::cout << "OpenGL Version " << GLVersion.major << std::endl;
	//}


	MSG msg = { 0 };
	while (GetMessage(&msg, NULL, 0, 0))
	{
		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}
	wglMakeCurrent(hDC, NULL);
	wglDeleteContext(hRC);
	if(hDC!=NULL)
		ReleaseDC(hwnd, hDC);

	return 0;
}

static LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam) {
	LRESULT result = 0;
	switch (msg)
	{
	case WM_PAINT:
		PAINTSTRUCT ps;

		//render();
		glClear(GL_COLOR_BUFFER_BIT);
		glBegin(GL_TRIANGLES);
		glColor3f(1.0f, 0.0f, 0.0f);
		glVertex2i(0, 1);
		glColor3f(0.0f, 1.0f, 0.0f);
		glVertex2i(-1, -1);
		glColor3f(0.0f, 0.0f, 1.0f);
		glVertex2i(1, -1);
		glEnd();
		glFlush();

		BeginPaint(hwnd, &ps);
		EndPaint(hwnd, &ps);

		break;
	case WM_SIZE:
		glViewport(0, 0, LOWORD(lParam), HIWORD(lParam));
		break;
	case WM_KEYDOWN:
		/* ESC: Escape */
		if (wParam == 27)
			PostMessage(hwnd, WM_CLOSE, 0, 0);
		/* F11: Fullscreen */
		else if (wParam == 122)
		{
			DWORD style = GetWindowLong(hwnd, GWL_STYLE);
			static int windowX, windowY, windowWidth, windowHeight = { 0 };
			if (fullScreen) {
				RECT rect;
				MONITORINFO mi = { sizeof(mi) };
				GetWindowRect(hwnd, &rect);
				windowX = rect.left;
				windowY = rect.top;
				windowWidth = rect.right - rect.left;
				windowHeight = rect.bottom - rect.top;
				GetMonitorInfo(MonitorFromWindow(hwnd, MONITOR_DEFAULTTOPRIMARY), &mi);
				SetWindowLong(hwnd, GWL_STYLE, style & ~WS_OVERLAPPEDWINDOW);
				SetWindowPos(hwnd, HWND_TOP, mi.rcMonitor.left, mi.rcMonitor.top,
					mi.rcMonitor.right - mi.rcMonitor.left,
					mi.rcMonitor.bottom - mi.rcMonitor.top,
					SWP_NOOWNERZORDER | SWP_FRAMECHANGED | SWP_SHOWWINDOW);
			}
			else
			{
				MONITORINFO mi = { sizeof(mi) };
				UINT flags = SWP_NOZORDER | SWP_FRAMECHANGED | SWP_SHOWWINDOW;
				GetMonitorInfo(MonitorFromWindow(hwnd, MONITOR_DEFAULTTOPRIMARY), &mi);
				SetWindowLong(hwnd, GWL_STYLE, style | WS_OVERLAPPEDWINDOW);
				SetWindowPos(hwnd, HWND_NOTOPMOST, windowX, windowY, windowWidth, windowHeight, flags);
			}
			fullScreen = !fullScreen;
		}
		break;
	case WM_CLOSE:
		DestroyWindow(hwnd);
		PostQuitMessage(0);
		break;
	default:
		result = DefWindowProc(hwnd, msg, wParam, lParam);
	}
	return result;
}
